Automatic Straight Line 4 Heads Automatic Servo Liquid Filling Machine 100-1000ml

Name: Automatic Straight Line 4 Heads Automatic Servo Liquid Filling Machine 1001000ml
Brand: SAMMI
Price: 3 USD

Wholesale Automatic Straight Line 4 Heads Automatic Servo Liquid Filling Machine 100-1000ml from china suppliers

application : Beverage, Chemical

packaging type : Cartons

packaging material : Wood

automatic grade : Automatic

driven type : Pneumatic

Voltage : 110V/220V, 220V 50hz/110V/60hz

Place of Origin : Guangdong, China

Brand Name : SAMMI

dimension(l*w*h) : 2200*1500*1800MM

warranty : 1 Year

key selling points : Long Service Life

filling material : Other, Milk, Water, Oil, Juice

filling accuracy : -

machinery test report : Provided

video outgoing-inspection : Provided

core components : PLC

Weight (KG) : 350

Material : stainless steel

Model : SM-1000-4

Filling range : 20-100ML 30-300ML,50-500ML100-1000 1000-2500ML 1000-5000MLX4

Filling speed : 20-40bottles/min

Application : MEDICAL

After Warranty Service : Video technical support; Online support

Local Service Location : None

After-sales Service Provided : Online support; Video technical support

Marketing Type : New Product 2020

MOQ : 1 set

Price : $3,500-4,500 / set

Contact Now

Products Description

Automatic Straight Line 4 Heads Automatic Servo Liquid Filling Machine 100-1000ml

Product Paramenters

Model Number	SM-1000-4
Equipement name	Automatic Filling Machine For liquid
Power	1000W
Power supply	AC220/110V 50/60HZ
Air pressure	0.5-0.7Mpa
Speed	10-60bottles/min(depend on material)
Accuracy	±1%
Number of machine heads	2/4/6/8/10 heads (customizable)
Filling range	10-100ml, 30- 300ml, 50-500ml, 100-1000ml, 500-3000ml, 1000-5000ml
Conveyor length	2050mm
Size of air compressor connector	φ10mm
Machine size	20009001700mm
Machine weight	350kg

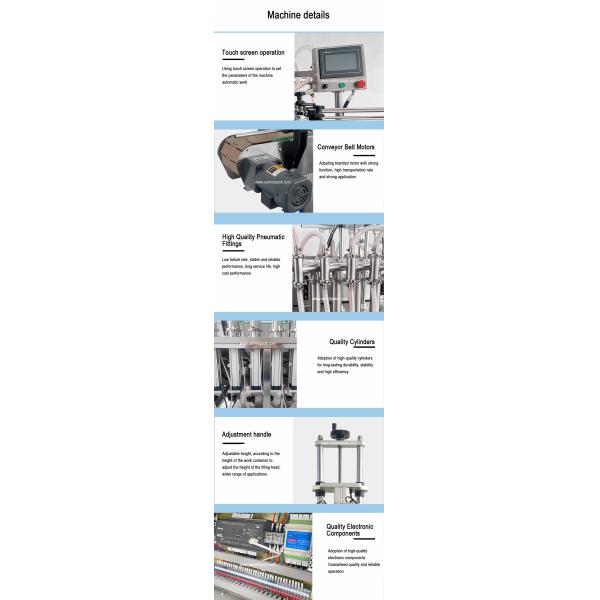

Details Images
